3A
Testing Item | standard |
Form | beads | pellets |
size | Ø 3-5mm | Ø 1.6-2.5mm | 1/8” | 1/16” |
4 x 8 mesh | 8 x 12 mesh |
Eq. Water Adsorbtion % wt RH50%, 25 oC | ≥21 | ≥20 |
Crushing Strength N/Granule (settled) | ≥80 | ≥30 | ≥70 | ≥30 |
Settled Density (g/ml) | ≥0.70 | ≥0.65 |
Loss on Attrition % wt. | ≤0.10 | ≤0.30 |
Partical Ritio % wt. | ≥99 | ≥97 | ～ |
Loss on Ignition % wt (575℃,1hr)(%wt) | ≤1.50 | ≤1.50 |
4A
Testing Item | standard |
Form | beads | pellets |
size | Ø 3-5mm | Ø 1.6-2.5mm | 1/8” | 1/16” |
4 x 8 mesh | 8 x 12 mesh |
Eq. Water Adsorbtion % wt RH50%, 25 oC | ≥21 | ≥21 |
Crushing Strength N/Granule (settled) | ≥80 | ≥40 | ≥70 | ≥30 |
Settled Density (g/ml) | ≥0.68 | ≥0.65 |
Loss on Attrition % wt. | ≤0.10 | ≤0.30 |
Partical Ritio % wt. | ≥97 | ～ |
Loss on Ignition % wt (575℃,1hr)(%wt) | ≤1.50 | ≤1.50 |
5A
Testing Item | standard |
Form | beads | pellets |
size | Ø 3-5mm | Ø 1.6-2.5mm | 1/8” | 1/16” |
4 x 8 mesh | 8 x 12 mesh |
Eq. Water Adsorption % wt RH50%, 25 OC | ≥21.5 | ≥21.5 |
Crushing Strength N/Granule (average) | ≥80 | ≥30 | ≥70 | ≥30 |
Settled Density (g/ml) (settled) | ≥0.68 | ≥0.64 |
Loss on Attrition % wt. | ≤0.10 | ≤0.30 |
Partical Ritio % wt. | ≥99 | ≥97 | ～ |
Loss on Ignition % wt (575oC,1hr)(%wt) | ≤1.50 | ≤1.50 |
13X-normal
Testing Item | standard |
Form | beads | pellets |
size | Ø 3-5mm | Ø 1.6-2.5mm | 1/8” | 1/16” |
4 x 8 mesh | 8 x 12 mesh |
Static Water Adsorption % wt RH50%, 25 oC | ≥26 | ≥26 |
Static CO2 adsorption %wt 250mmHg 25 oC | ≥17.5 | ≥17.5 |
Crushing Strength N/Granule (settled) | ≥80 | ≥30 | ≥75 | ≥30 |
Settled Density (g/ml) | ≥0.62 | ≥0.62 |
Loss on Attrition % wt. | ≤0.10 | ≤0.20 |
Partical Ritio % wt. | ≥97 | ～ |
Loss on Ignition % wt (575℃,1hr)(%wt) | ≤1.50 | ≤1.50 |
13X-High Performance (special for Oxygen Generators PSA process, up to 95.5% Oxygen)
Property | Unit | Typical value |
Total Volatiles (1000 F) | % | 2.5 |
Compacted Bulk Density | lb./cu.ft. | 42 |
H2O Adsorption Capcity* | Wt.% | 27 |
CO2 Adsorption Capacity** | Wt.% | 17.5 |
Average Crushing Strength | Ibs. | 9 |
Screen Analysis | | |
On 3 mesh wt. | % | 0 |
On 4 mesh wt. | % | 10 |
On 8 mesh wt. | % | 97 |
On 20 mesh wt. | % | 100 |
Lithium Molecular Sieves (special for Oxygen Generators VPSA Process up to 93% Oxygen)
Property | Unit | Beads | Note |
SyGastec Lix - 300 | SyGastec Lix - 301 |
Diameter | mm | 1.6-2.5mm | 0.4-0.8mm |
Compacted Bulk Density | g/ml | 0.60 - 0.66 | 0.60 – 0.66 | Settled |
N2 Adsorption Capacity* | NL/kg | ≥22.0 | ≥23.5 | 1bar, 25oC |
N2/O2 Selectivity | ～ | ≥6.2 | ≥6.2 | 1bar, 25oC |
Crushing Strength | N | ≥25 | ～ | Average |
Loss on Attrition | %wt | ≤0.1 | ≤0.3 | ～ |
Particle Ratio | %wt | ≥97 | ≥95 | Standard Sieve |
Loss on Ignition | %wt | ≤0.5 | ≤0.5 | KF |
Packages: 55 gallon dsteel drums or small and big bags
In one 55 gallon drums: 150kg 3A net weight
150kg 4A net weight
150kg 5A net weight
140kg 13X net weight
One 20# Container full loading 80 drums in 55 gallon

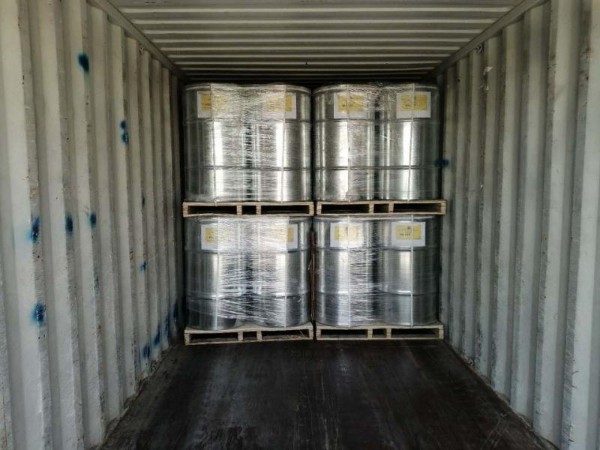

Zeolite Molecular Sieves 55 gallon drums pallets Container loaded
Zeolite Molecular Sieves 55 gallon drums pallets Container loaded
CMS 137kg drums and Zeolite Molecular Sieves 55 gallon drums pallets Container loaded
